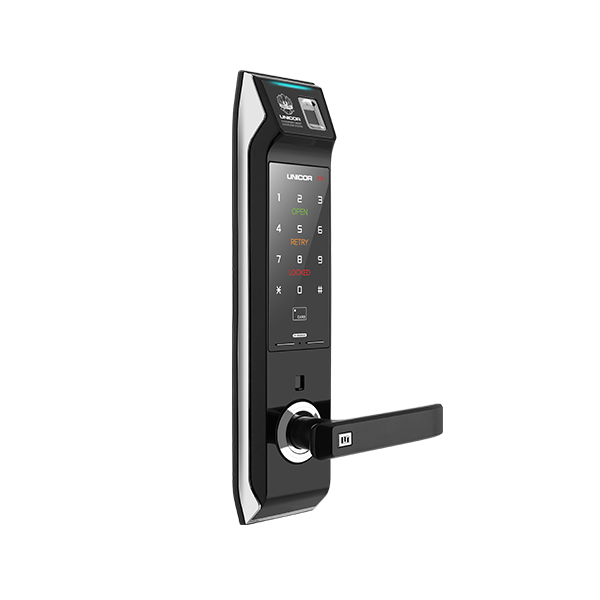

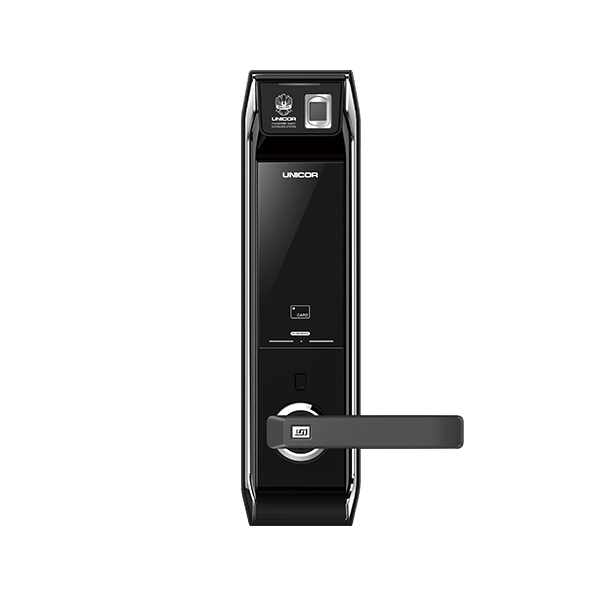

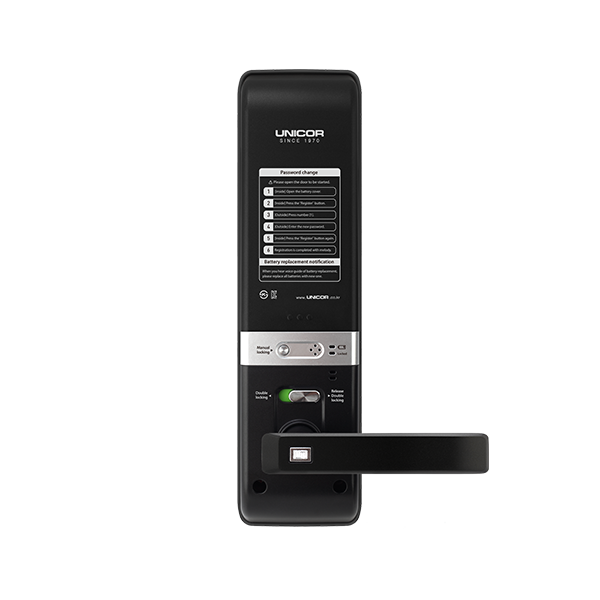

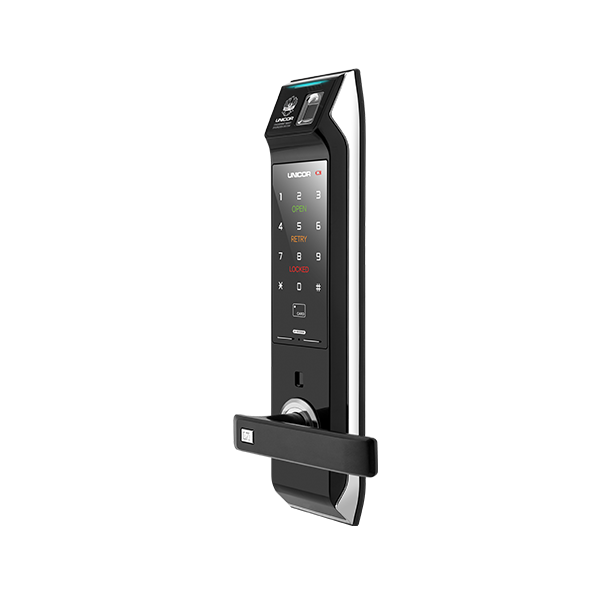

M9000-FWSK

Mortise Lock

M9000-FWSK

Worldwide loved Bestseller which is suggesting a way forward of the premium smart door lock.

Opening Method 5-way(Password, Fingerprint, Bluetooth, Smart Key, Mechanical Key)
Color
  • Chrome




Dimension & Spec
Type Specification Dimension and Detailed spec.
Installation Environment General Fire Door Door thickness 40mm ~50mm
Type of product D-F-T-K-M DC-Fire Resistant-Temperature Sensor-Key Type-Mortise Lock
Product size Outer Body 82(W) X 313(H) X 22.5(D)mm
Inner Body 81(W) X 301(H) X 35.5(D)mm
Material Outer Body PC, ABS
Inner Body ALDC, PC
Components Basic Components Smart Key 4pcs(2pcs of UA-K200, 2pcs of UA-K210)
Optional Wireless Communication Pack(Remote controller type/Video phone Interlink type)
Battery DC 6V 1.5V LR6 AA Alkaline Battery 4pcs
Emergency Power DC 9V Alkaline Battery(sold separately)
DownLoad
User Manual 9000 Manual EN.pdf 2020.05.29
APP User Manual APP Manual EN.pdf 2020.05.29
