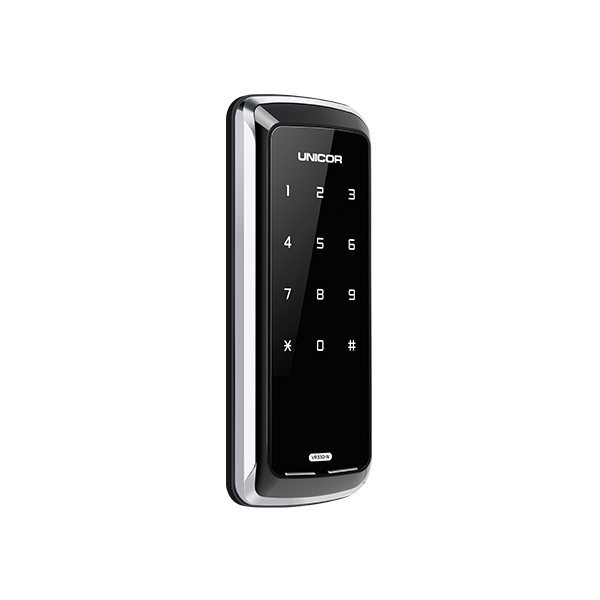

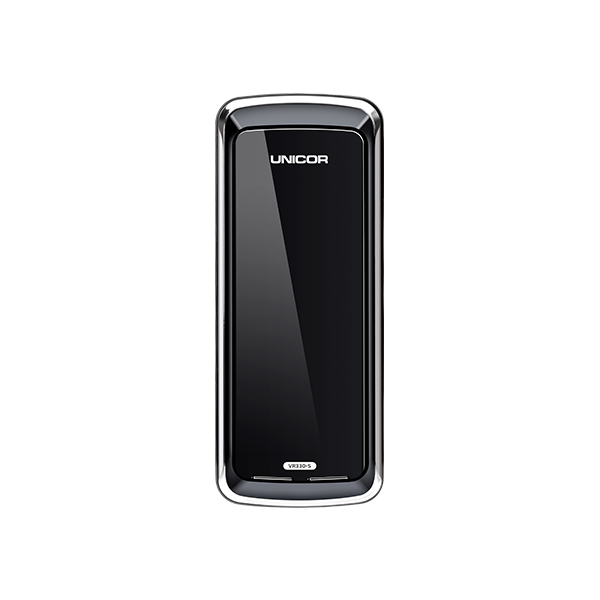

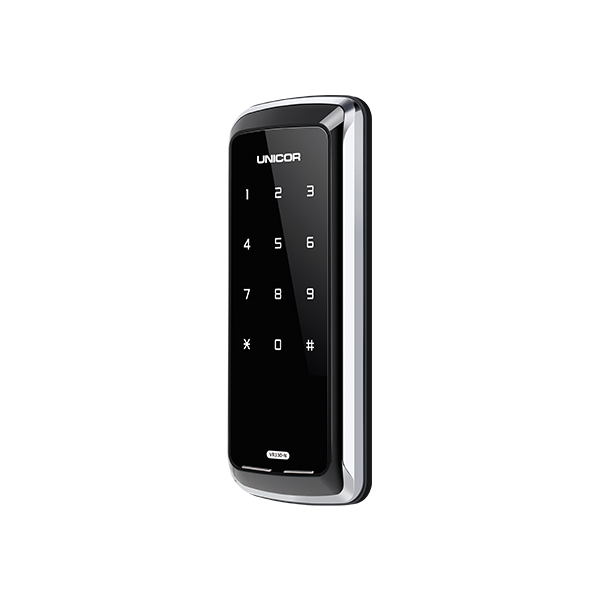

Glass/Sash Lock
VR330-N
12mm small support pin makes it easier and safer to install. No-Frills Sash door only with Password function.
| Opening Method | 1-way(Password) |
|---|---|
| Color |
|
| Type | Specification | Dimension and Detailed spec. |
|---|---|---|
| Installation Environment | Sash Door(House Door, Warehouse Door etc.) | Door thickness 12mm recommended |
| Type of product | D-NF-T-NK-S | Direct Current-Non-Refratory type-Temperature Sensor typ-Non-Mechanical Key type-Rim lock |
| Product size | Outer Body | 72(W) X 181(H) X 19.5(D)mm |

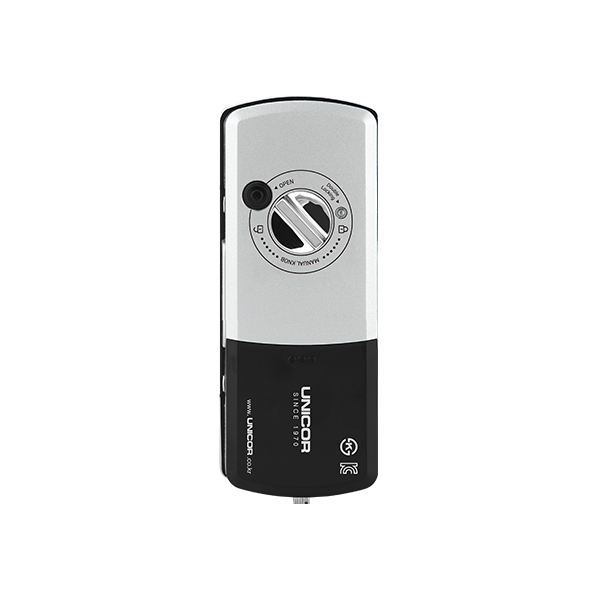

| Inner Body | 75(W) X 179(H) X 39(D)mm | |
| Material | Outer Body | PC, ABS |
| Inner Body | ALDC, ABS | |
| Components | Basic Components | - |
| Optional | - | |
| Battery | DC 6V | 1.5V LR6 AA Alkaline Battery 4pcs |
| Emergency Power | DC 9V | Alkaline Battery(sold separately) |
| User Manual | 330 Glass Sash Manual EN.pdf | 2020.05.29 |  |
|---|---|---|---|
| Security mode Manual | 330 Security mode Manual EN.pdf | 2020.05.29 | |
