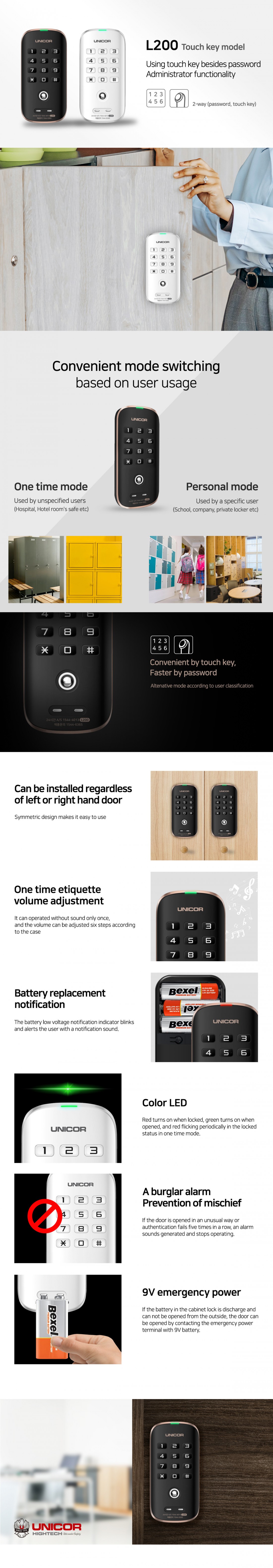

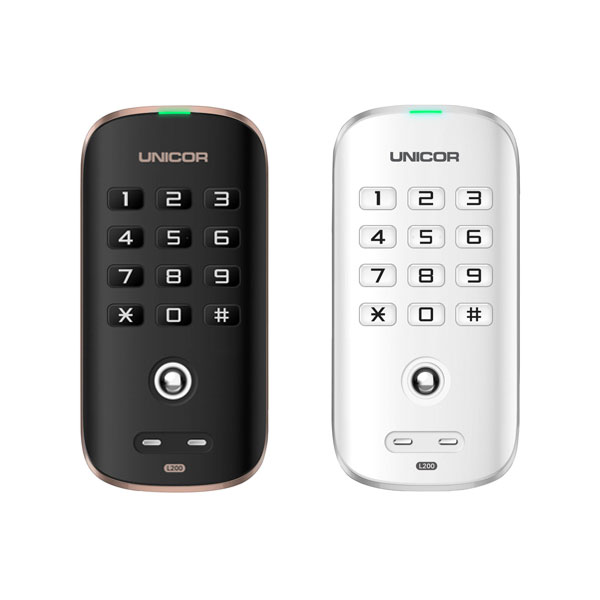

Cabinet Lock
L200
using touch key besides password Administrator funcionality
| Opening Method | 2-WAY (Password, touch key) |
|---|---|
| Color |
|
| Type | Specification | Dimension and Detailed spec. |
|---|---|---|
| Installation Environment | Indoor | 10~30mm |
| Type of product | Cabinet Lock | - |
| Product size | Outer Body | 60(W) X 12.5(H) X 23.5(D)mm |
| Inner Body | 65(W) × 12.6(H) × 28(D)mm | |
| Material | Outer Body | ABS |
| Inner Body | ABS | |
| Components | Basic Components | Touch Key 2 EA |
| Optional | - | |
| Battery | DC 6V | 1.5V LR6 AA Alkaline Battery 3pcs |
| Emergency Power | DC 9V | Alkaline Battery (sold separately) |
| User Manual | Cabinet Lock_Manual EN.pdf | 2023.07.05 |  |
|---|
