Push Pull

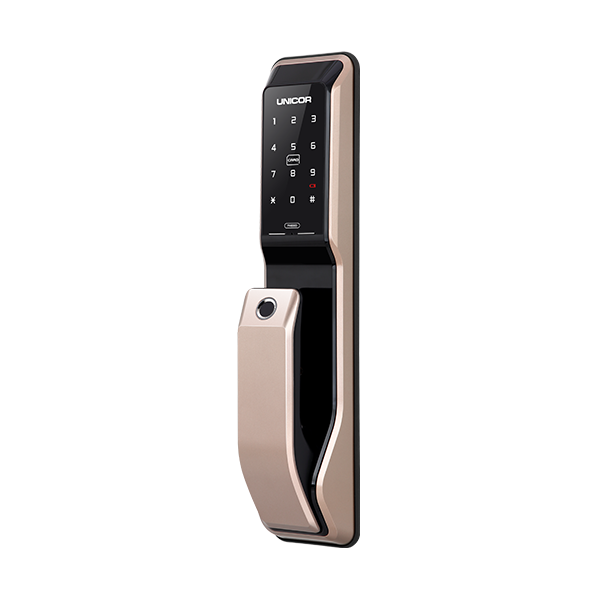

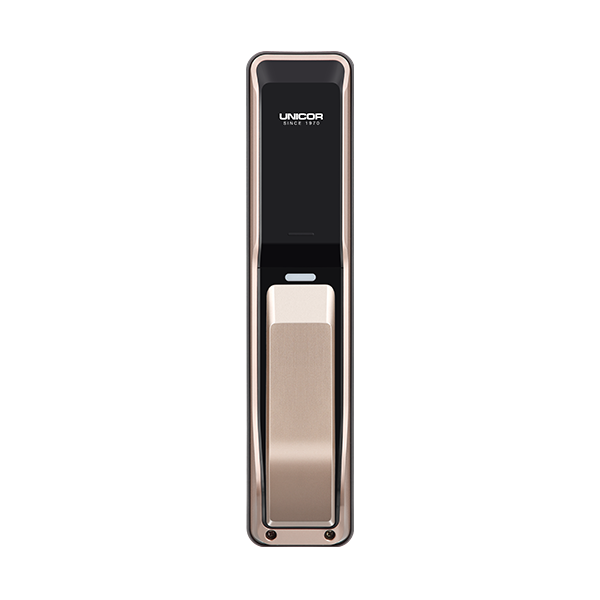

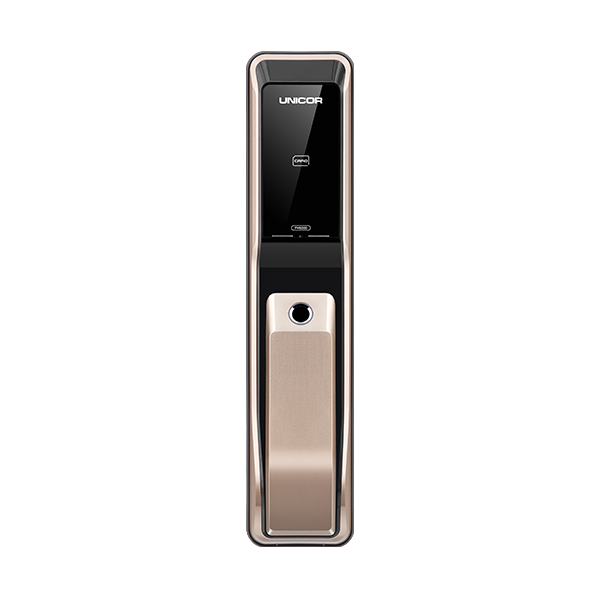

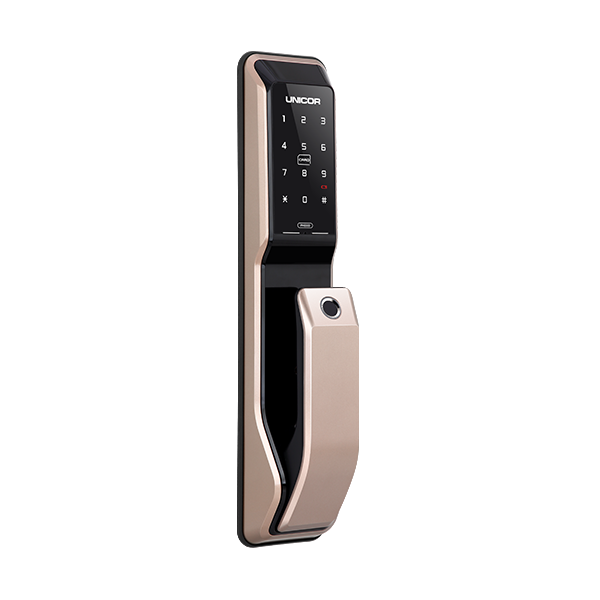

PM8000FSK
Robust design faithful to basic functionality
| Opening Method | 4-WAY (Password, Fingerprint, Smart Key, Mechanical Key) |
|---|---|
| Color |
|
| Type | Specification | Dimension and Detailed spec. |
|---|---|---|
| Installation Environment | General Fire Door | Door thickness 40mm ~50mm |
| Type of product | D-F-T-K-M | DC-Fire Resistant-Temperature Sensor-Key Type-Mortise Lock |
| Product size | Outer Body | 85(W) X 394(H) X 34(D)mm |
| Inner Body | 88(W) X 406(H) X 35.5(D)mm | |
| Material | Outer Body | PC, ABS |
| Inner Body | ABS | |
| Components | Basic Components | Smart Key 4pcs(2pcs of UA-K200, 2pcs of UA-K210) |
| Optional | Wireless Communication Pack(Remote controller type/Video phone Interlink type) | |
| Battery | DC 6V | 1.5V LR6 AA Alkaline Battery 4pcs |
| Emergency Power | DC 9V | Alkaline Battery(sold separately) |
| User Manual | PM8000 User ManualEN.pdf | 2020.05.26 |  |
|---|---|---|---|
| Security mode Manual | PM8000 Security mode ManualEN.pdf | 2020.05.26 | |
