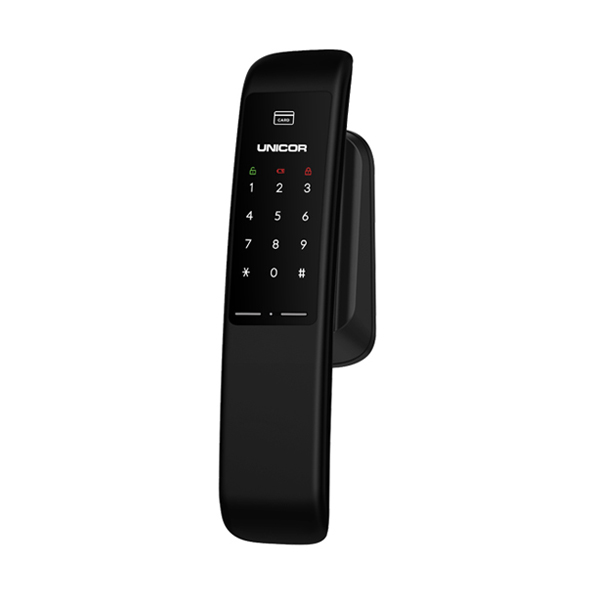

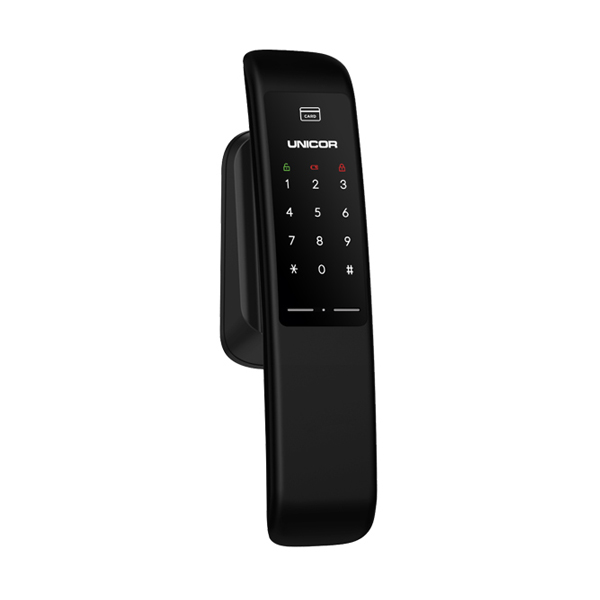

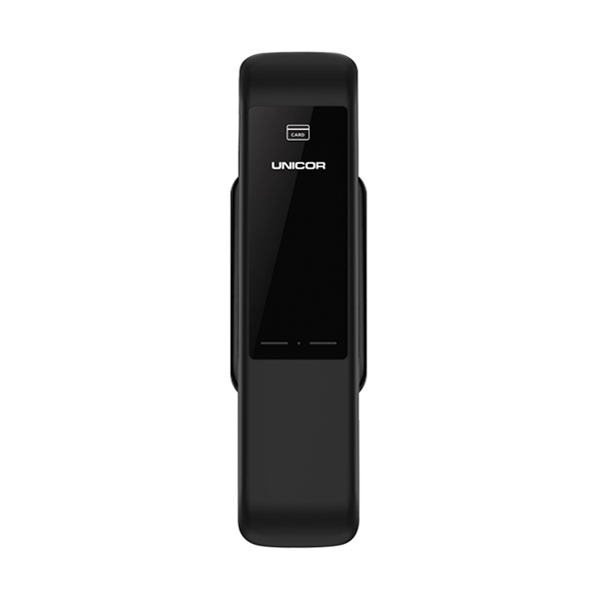

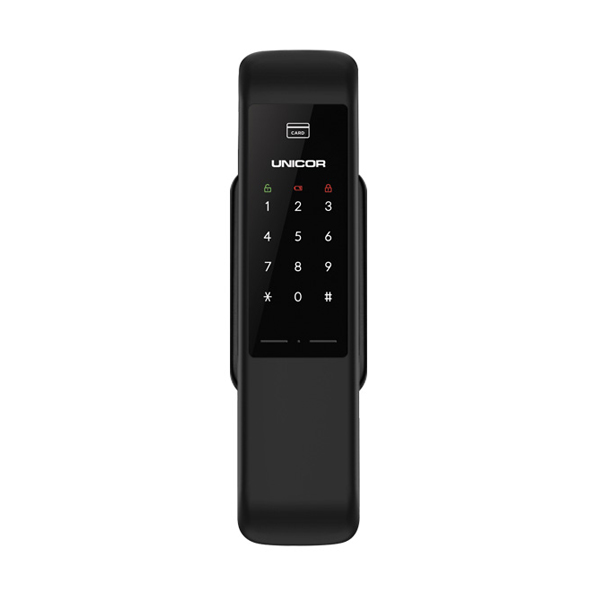

PM8100-S

Push Pull

PM8100-S

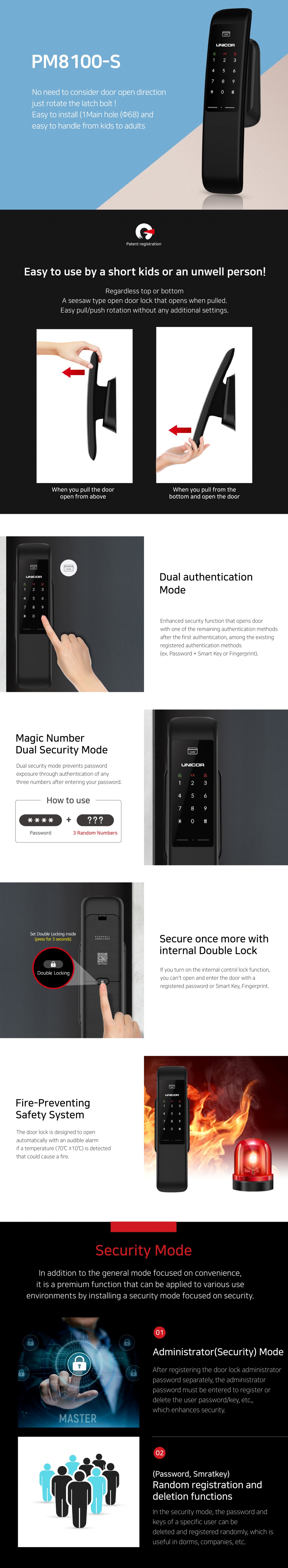

Easy to intall with one hole of door and no need to consider open direction!

Opening Method 2-WAY (Password, Smart Key)
Color
  • Black

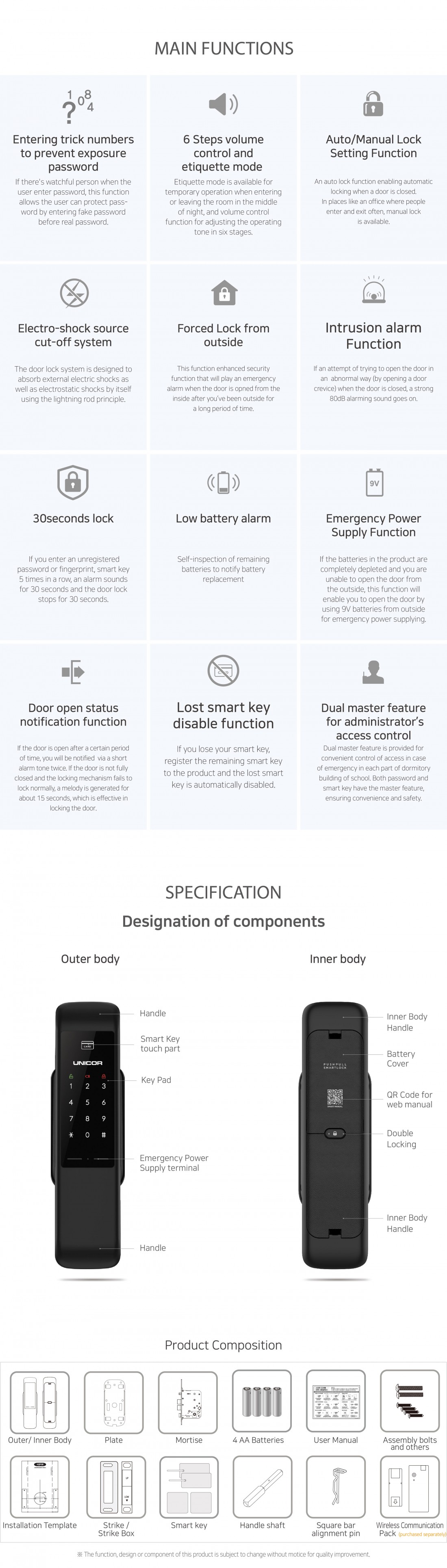

Dimension & Spec
Type Specification Dimension and Detailed spec.
Installation Environment General Fire Door
Type of product D-F-T-K-M
Product size Outer Body 81.5(W) X 291(H) X 91(D)mm

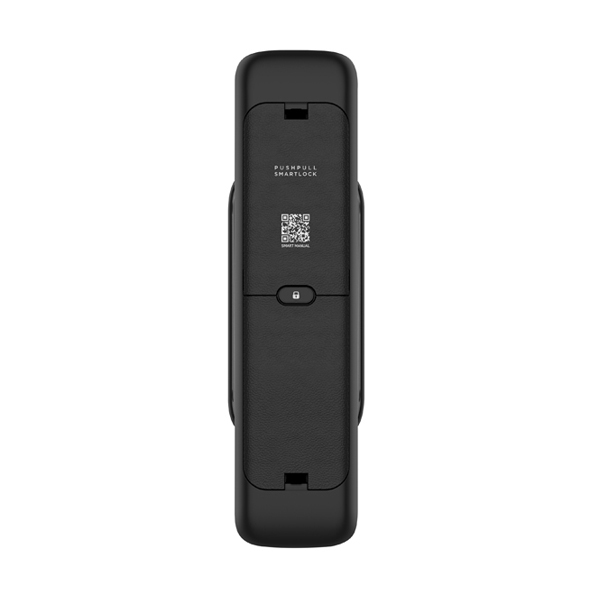

Inner Body 80(W) X 292(H) X 81(D)mm
Material Outer Body PC, ABS
Inner Body PC, ABS
Components Basic Components Smart key 4pcs (2pcs of US-K200, 2pcs of UA-K210)
Optional
Battery DC 6V 1.5V LR6 AA Alkaline Battery 4pcs
Emergency Power DC 9V
