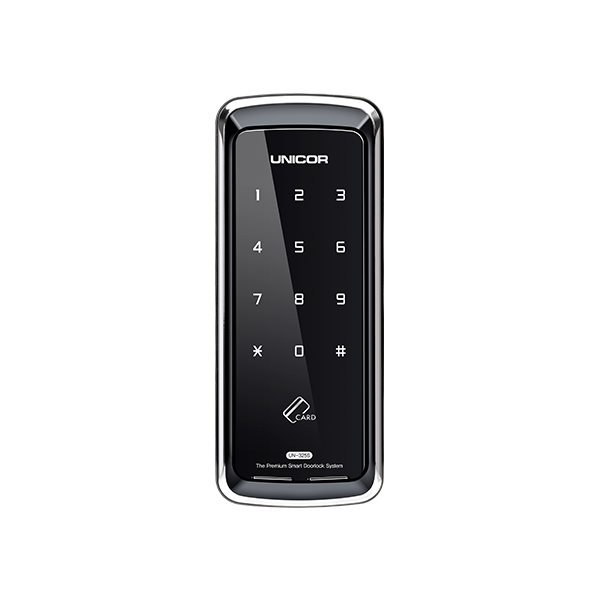

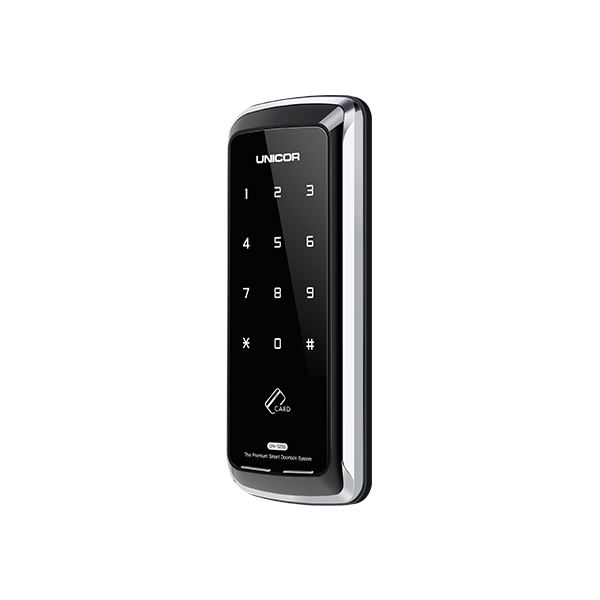

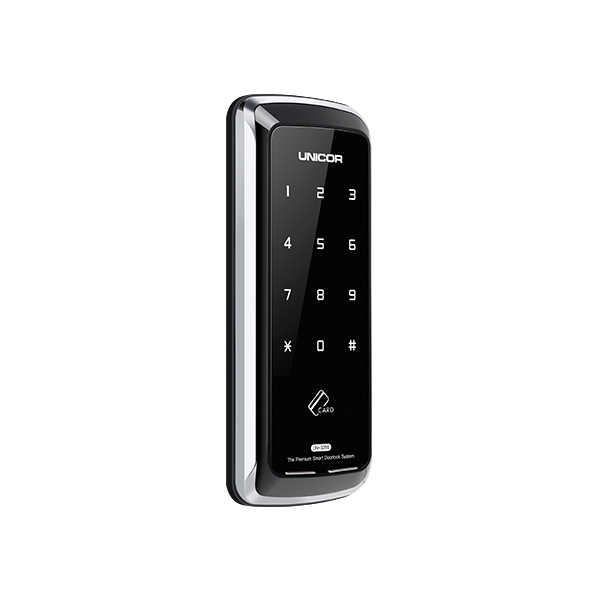

Rim Lock
R330-S
Stylish design and premium touchpad for a brilliant trendy emotion. Smart Key Type Standard Rim Lock.
| Opening Method | 2-way(Password, Smart Key) |
|---|---|
| Color |
|
| Type | Specification | Dimension and Detailed spec. |
|---|---|---|
| Installation Environment | General Fire Door | Door thickness 40mm ~50mm |
| Type of product | D-NF-T-NK-S | DC-Non Fire Resistant-Temperature Sensor-Keyless Type -Rim Lock |
| Product size | Outer Body | 72(W) X 181(H) X 19.5(D)mm |

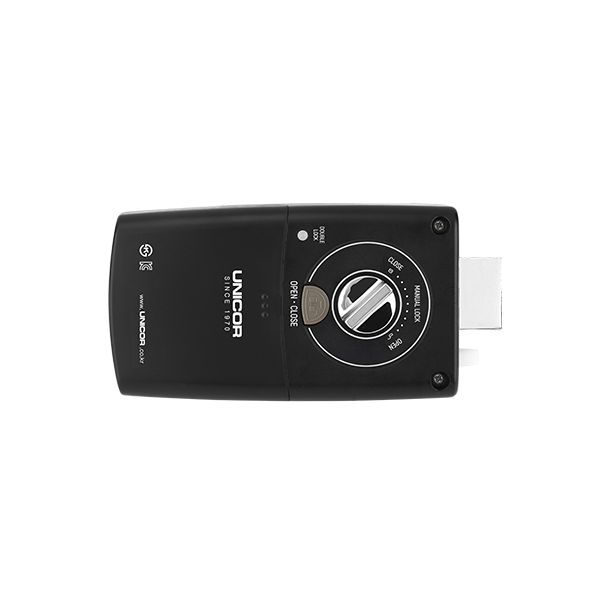

| Inner Body | 157.5(W) X 90.5(H) X 41(D)mm | |
| Material | Outer Body | PC, ABS |
| Inner Body | ALDC, ABS | |
| Components | Basic Components | Smart Key 4pcs(2pcs of UA-K200, 2pcs of UA-K210) |
| Optional | - | |
| Battery | DC 6V | 1.5V LR6 AA Alkaline Battery 4pcs |
| Emergency Power | DC 9V | Alkaline Battery(sold separately) |
| User Manual | 330 Manual EN.pdf | 2020.05.29 |  |
|---|---|---|---|
| Security mode Manual | 330 Security mode Manual EN.pdf | 2020.05.29 | |
